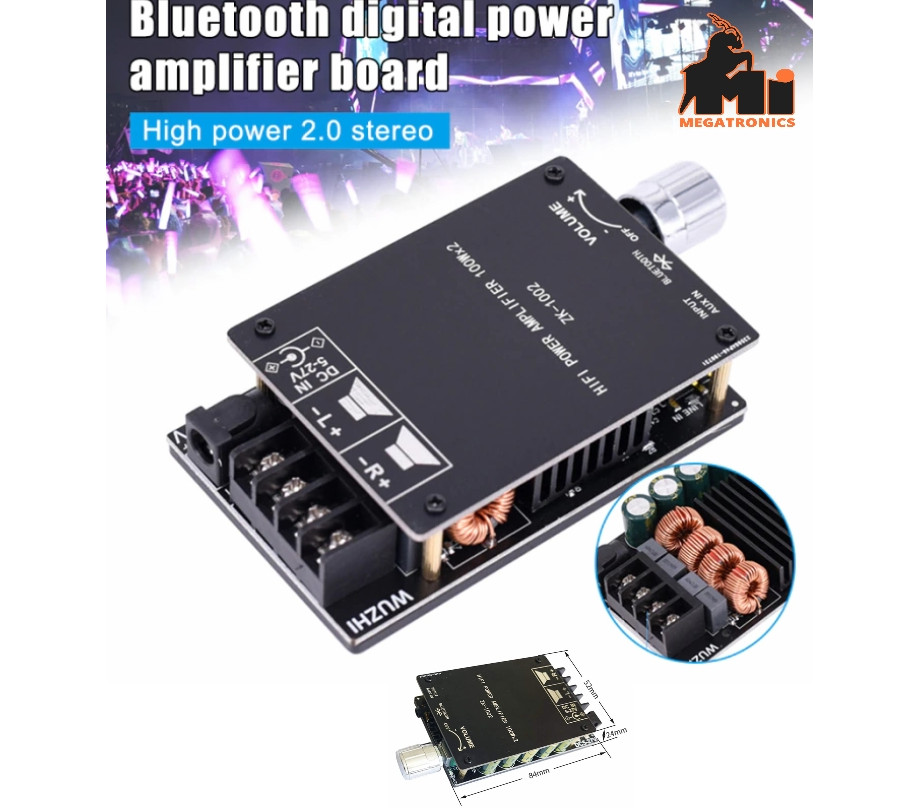

100WX2 HiFi TPA3116 Bluetooth 5.0 audio Amplifier High Power Digital Stereo Board Home Theater
1. Red and gray toroidal inductors are designed for digital power amplifiers with low loss, high bandwidth and high fidelity.
2. Film capacitor 684 is a dedicated capacitor for audio amplifiers with low loss, high bandwidth and high fidelity.
3. Input mode with two AUX and Bluetooth audio sources (2 in 1).
4. Volume adjustment potentiometer with switch for easy volume control, great for DIY speakers.
5. Direct current copper female head, fence terminal, can withstand large current, no heat, no damage to the line, good wiring, not easy to short circuit.
6. Bluetooth version 5.0, higher transmission efficiency, greater transmission distance.
Specification:
Type: Two-channel bluetooth 5.0 power amplifier board
Amp Chip:TPA3116D2
Output impedance:4~8 Ω Speaker
Output power: 100W*2
Current: ≥3A
Filter: yes
Power supply voltage: 5-27V
bluetooth version: 5.0
Audio input: bluetooth, AUX
Number of channels: 2 channels
Size: 84X52X24mm
Bluetooth transmission distance: 15 meters
Support Format:FLAC/APE/MP3/WMA
Protection mechanism: Overvoltage, Undervoltage, Excessive, DC detection, Short circuit protection
Package Includes:
1 set x power amplifier board
